Filter Wheels
Important: Both Filterwheels have mechanical position sensors which enable the correction of possible motor/rubber slipping errors.
L-R-G-B-Ha 68mm filterset Deepsky/ SBIG STX and Keller-ASA-Cassegrain
For the color imaging of deepsky objects a larger diameter L-R-G-B-Ha of 68mm is required in order to prevent the vignetting during autoguiding with the internal guider chip. A frameless filterset

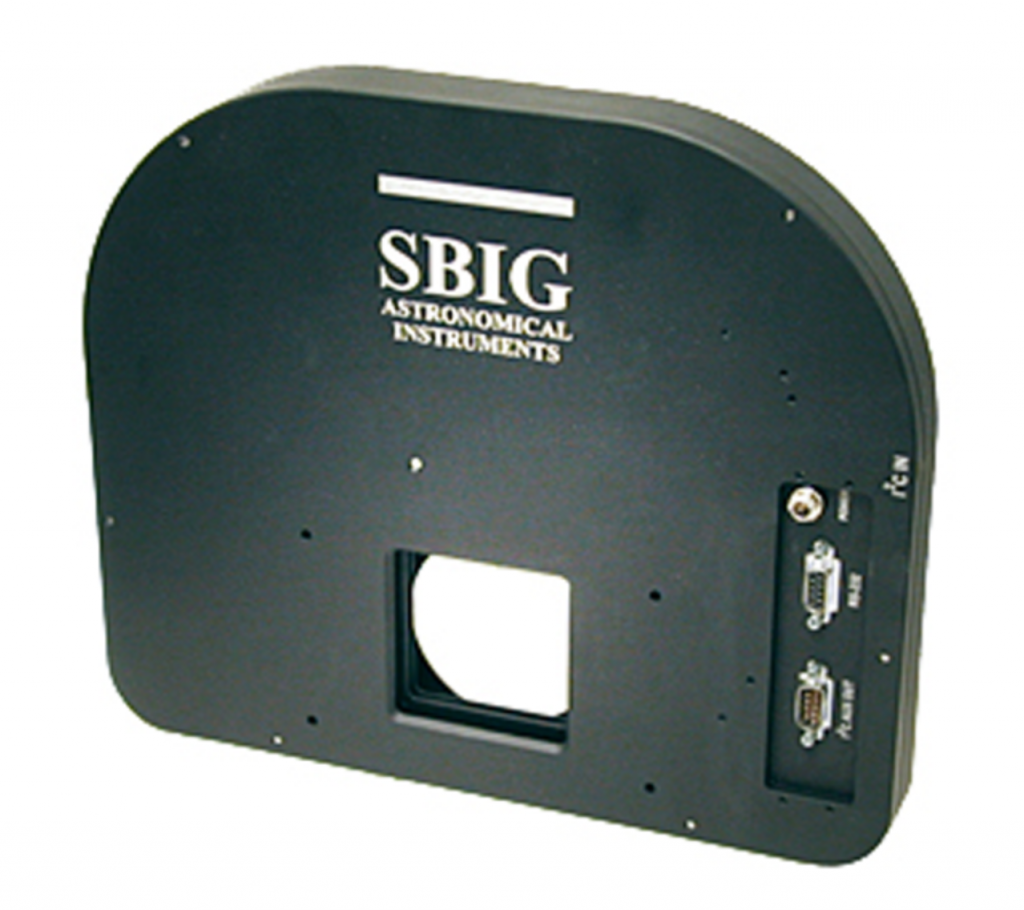

from Baader-Planetarium Germany is used in combination with the STX-16803 SBIG CCD camera. The filterplates are placed in the slots of the STX filterwheel.

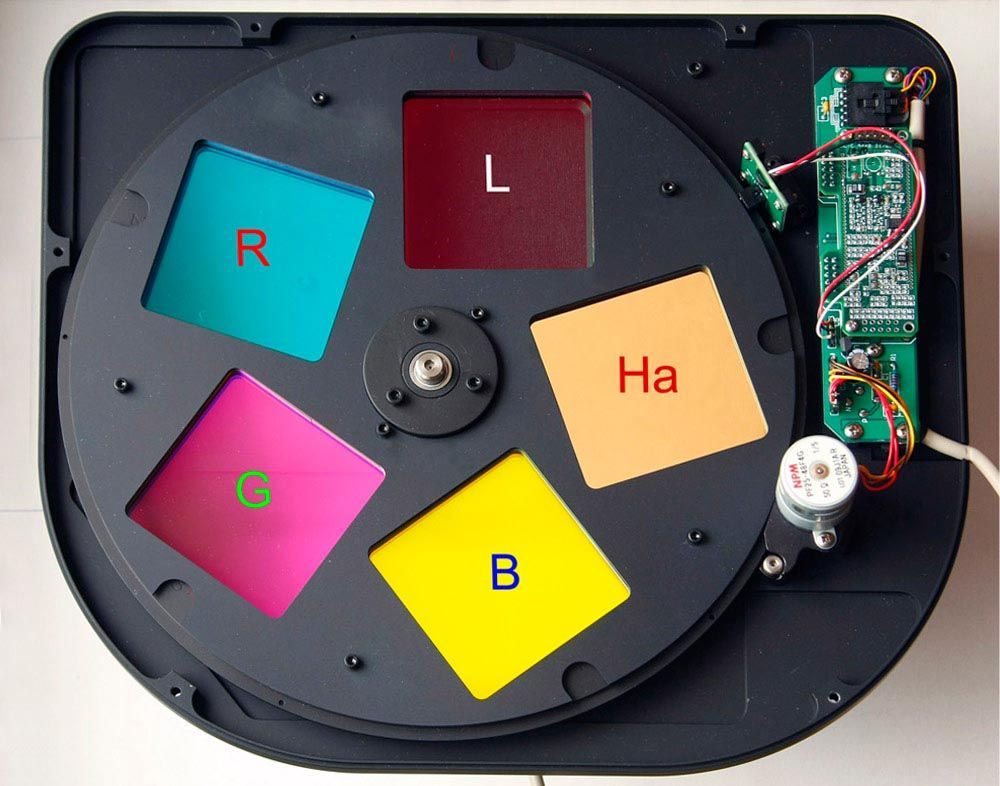

Pos 1 • L= light filter (UV/IR cut)

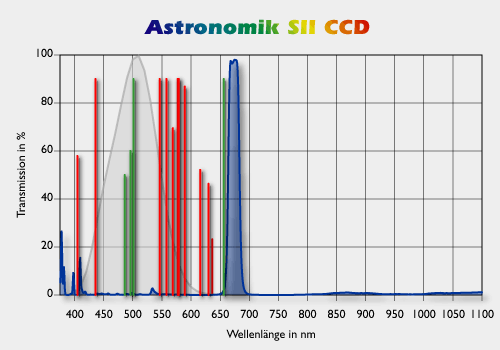

Pos 2 • R= red filter or SII=sulfur/'red' filter ... Hubbel Palette
Pos 3 • G= green filter

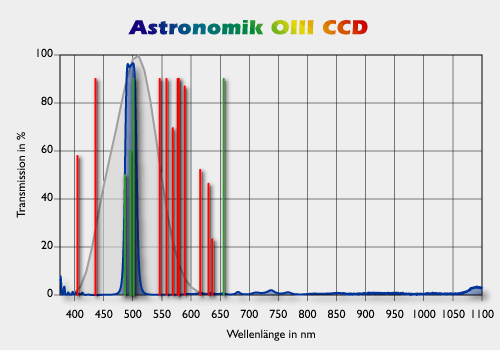

Pos 4 • B= blue filter or OIII=oxigen/'blue' filter ... Hubbel Palette

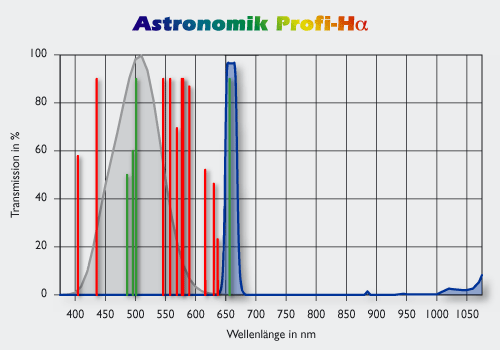

Pos 5 • Ha=H-alpha filter Ha=hydrogen/'green' filter ... Hubbel Palette
The three narrow band filters SII/Ha/OIII can be assorted to the R/G/B channels in the imageprocessing program as required.

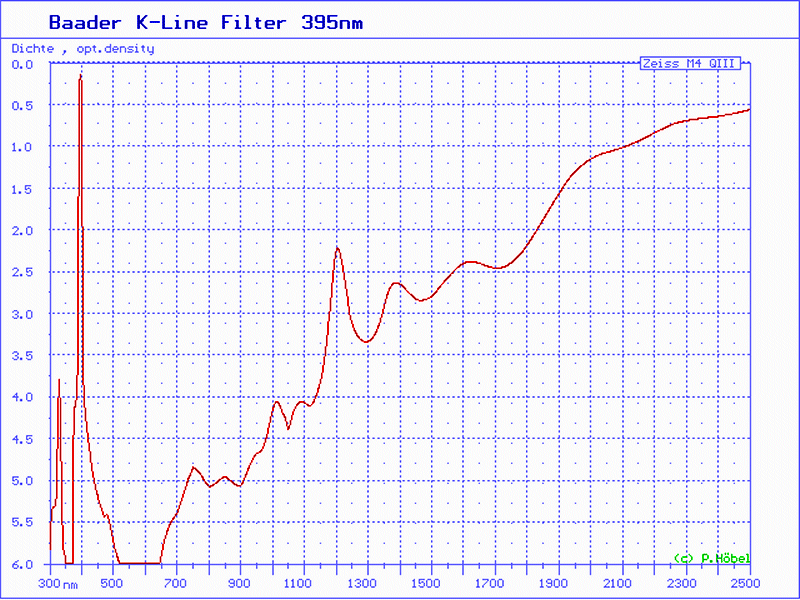

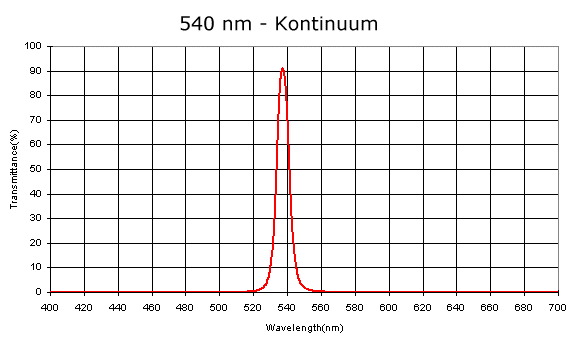

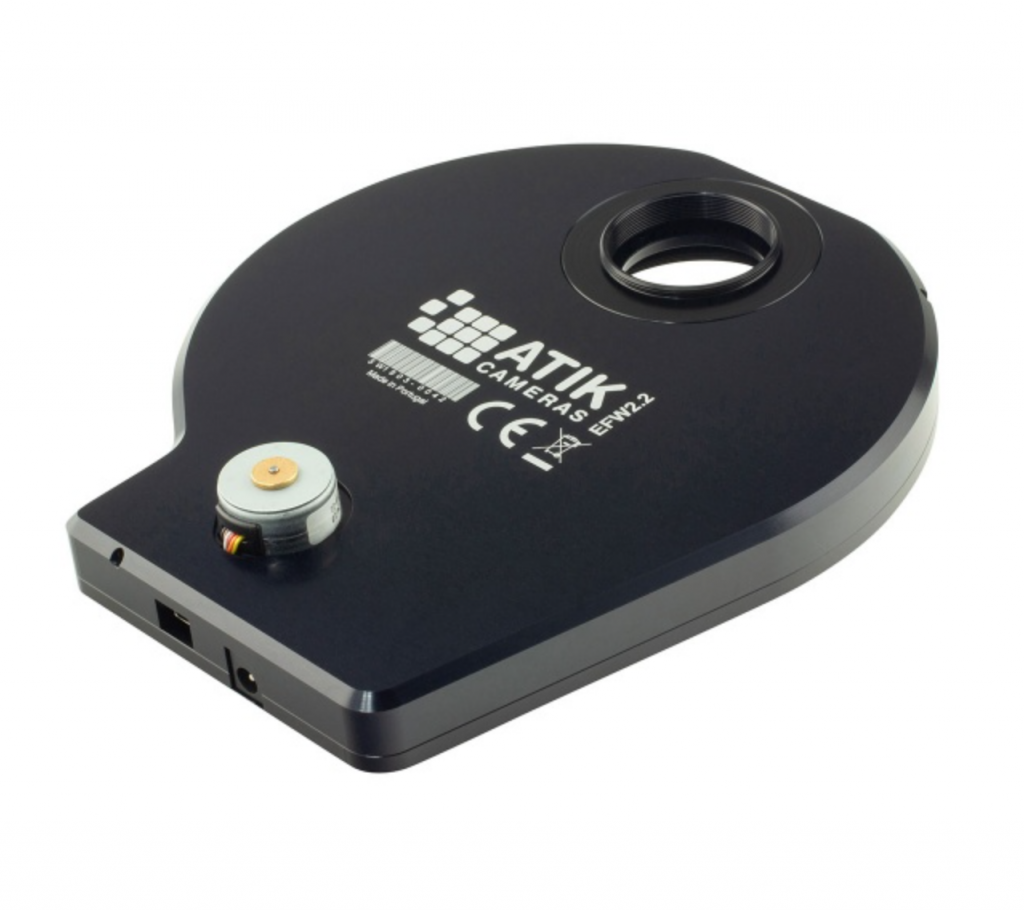

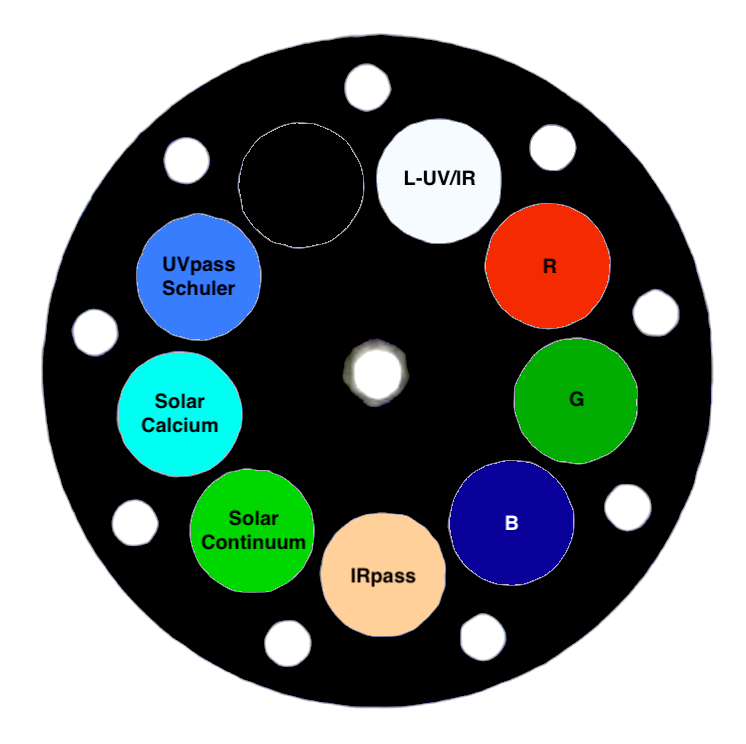

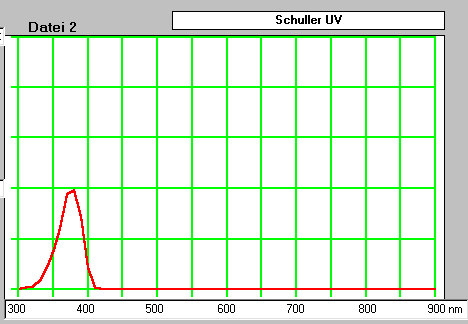

For the imaging of Planets/Moon/Sun various filters (1,25) are combined in one filterwheel (9er set)
For the Sun the bright light is in adddition blocked by a special blocking filter foil -Baader AstroSolar® Safety Film OD 5.0- in front of the telescope.
WARNING: NEVER OBSERVE UNFILTERED SUN BRIGHT FIELD OR YOU WILL DESTROY YOUR EYES OR EQUIPMENT
