Telescopes

ASA/Keller 400

-> DeepSky, Sun Bright Field, Moon, Planets

P Keller-ASA 400 (3600mm/ 1200mm) f9/f3 ............................ LOMO Mirror Sital Glass (f9 Secondary Flattener/ f3 Primary Corrector)

Orion ED80 (partial conversion)

-> Auto-Guiding DeepSky

Orion ED 80 (600mm) f7,5 ..............................................................(shortened tube), Flip Mirror, Guider Okular, SBIG Guide Head adapter and laser quick finder

Skywatcher Evostar ED150 (total conversion)

-> Sun H-alpha

Due to the good correction of the ED Glass element, around the H-alpha red wavelength 656nm, it is used in my observatory as a H-alpha telescope. It was rebuilt for this purpose.

Skywatcher Evostar ED150 (1200mm) f8 .......................................................... CONVERSION New Baader BP Guidescope Rings, New color (white-grey), Removed dew cap ready for D-ERF placement, New Feathertouch Focuser

Original delivered Skywatcher Evostar ED150 before the extensive conversion ................. Many thanks Mr Paur for the help/ TS Ransburg, Germany

Typical Ronchigramm ED150 extrafocal (reference: Jeff https://www.cloudynights.com/topic/874851-dpac-test-sw150ed/) .................................... Higly corrected in red!

Star test ED150 intra and extra focal

Tubus in new white-grey color, back part with machined adapter for Feathertouch Focuser

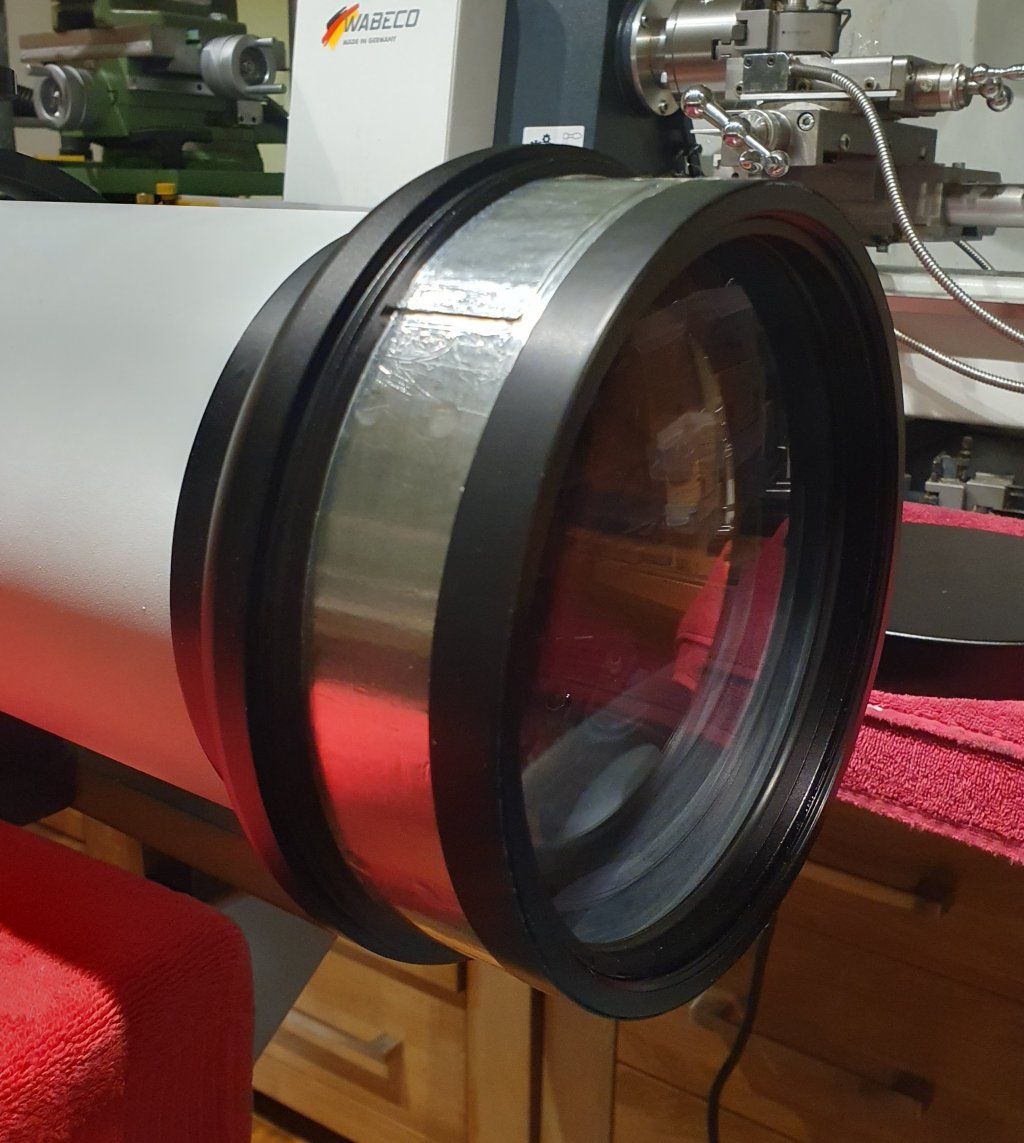

Modified junction D-ERF/ED150: the original black tissue tape was replaced by thick aluminium tape and black PVC tape. This small step in diameter at the front prevents an accidentally slipping of the three point fixed D-ERF filter.
Button

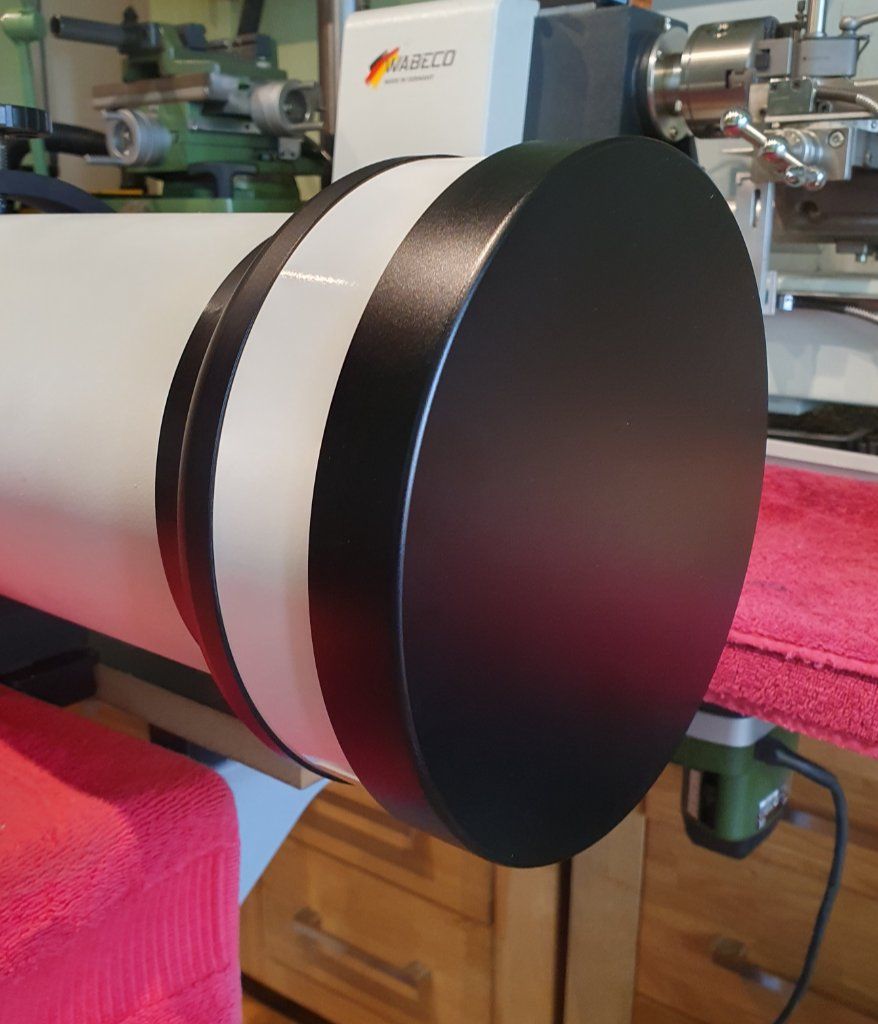

The selfmade screw cap: the dew cap was shortened (55mm) and permanently fixed to the original end cap. A good protection of the front lens during storage
Button

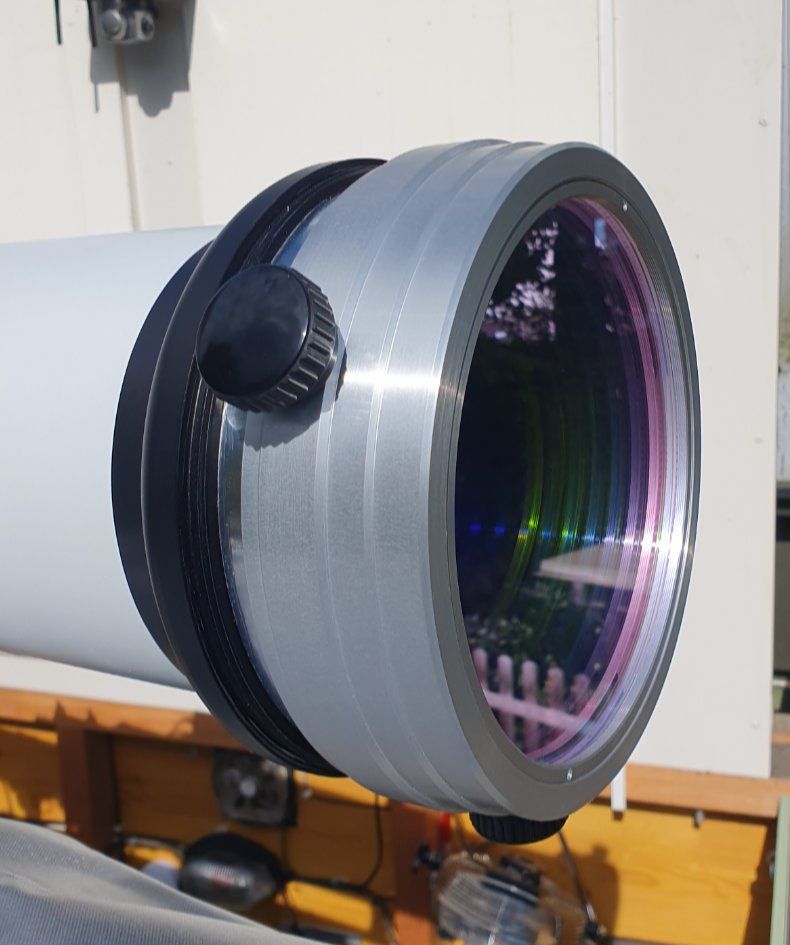

D-ERF with TS frame fixed via three pressure screws to the front of the H-alpha telescope
Button
special cover for telezentric T3 projection
Button

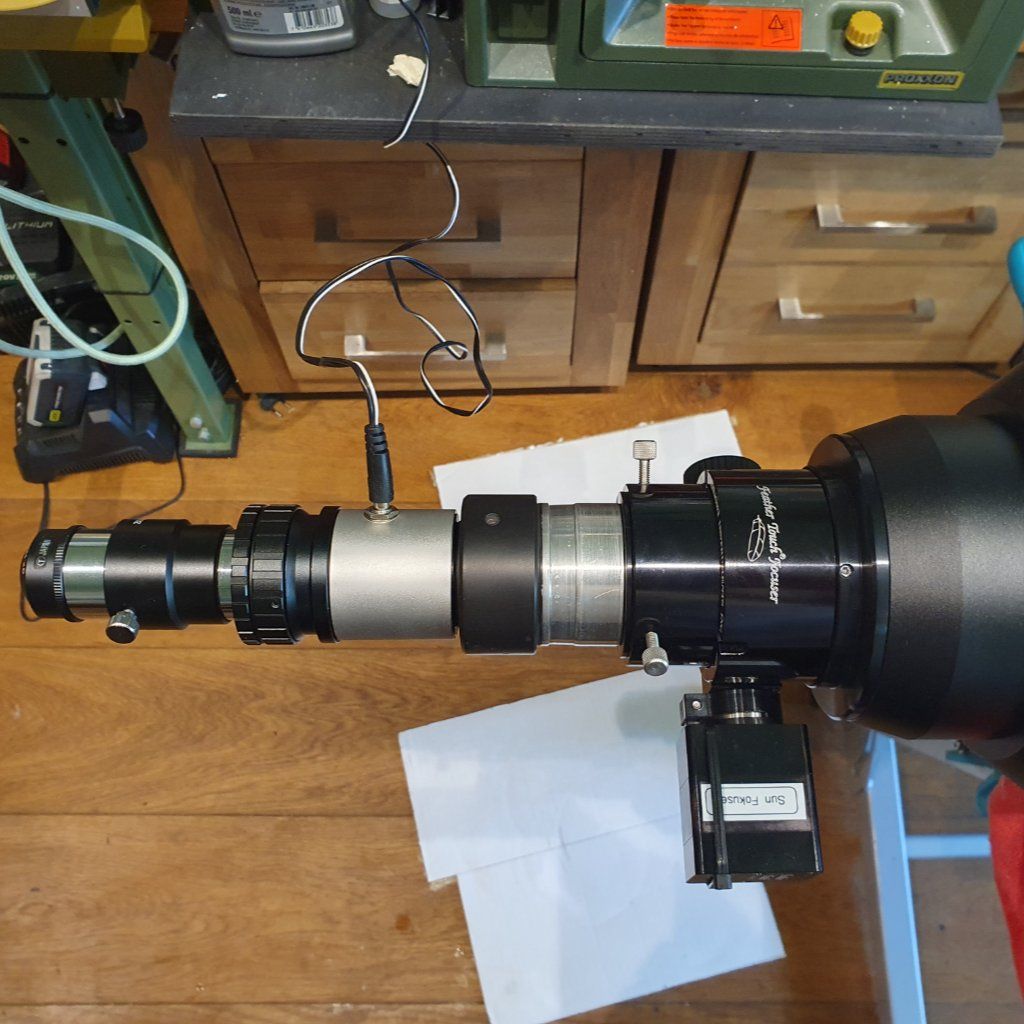

Gryzbowksi Collimator for focuser/adapter and lens collimation process
Button

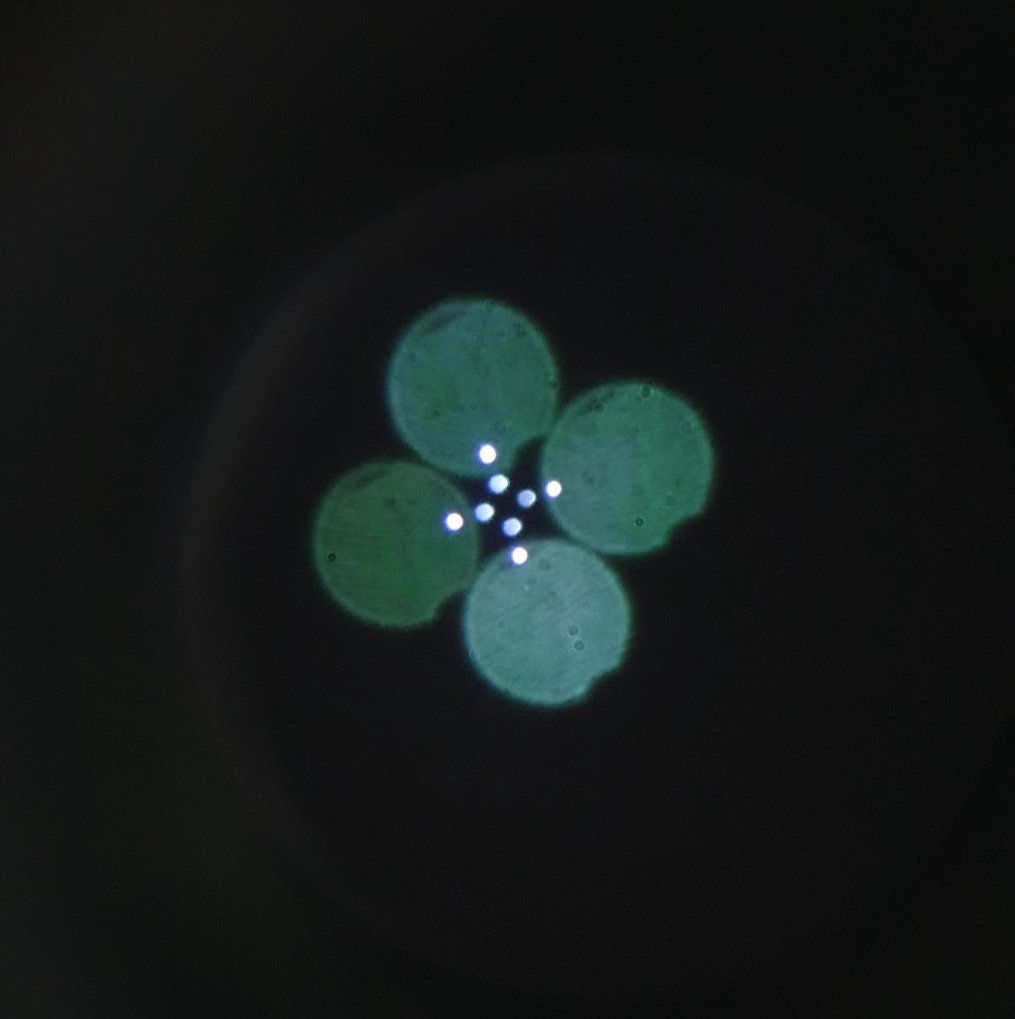

Result after installation, adjusting the focuser tilt, perfectly collimated
Button
Laser Collimator for a second analysis of central adjustment
Button

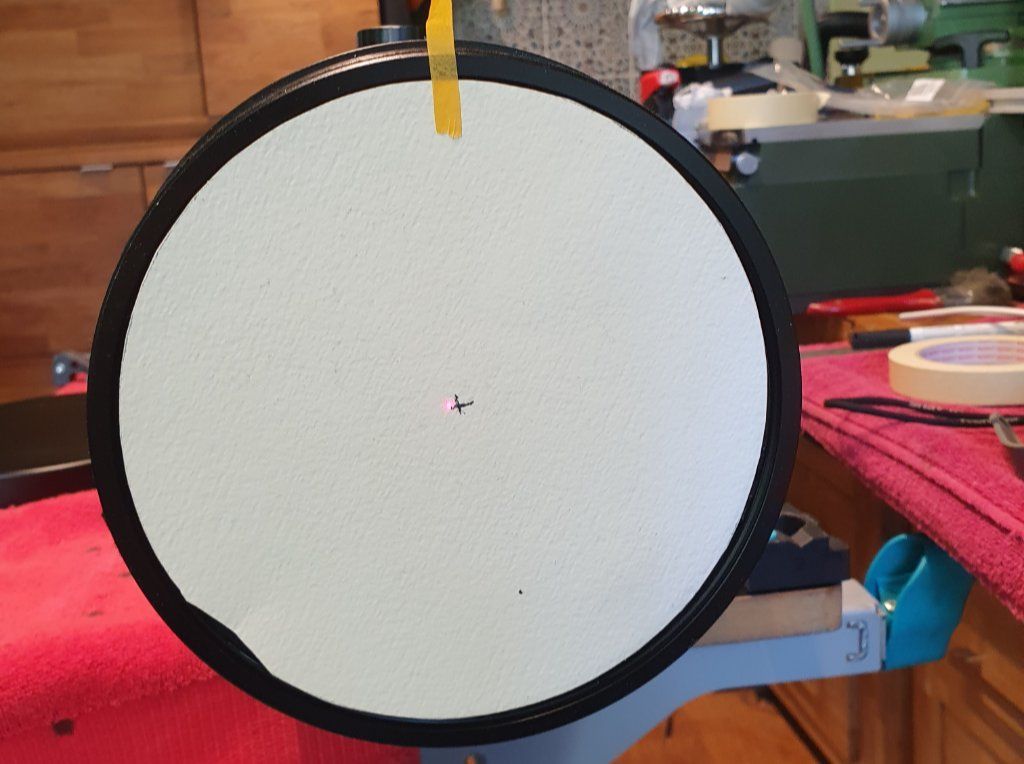

Result of second analysis, focuser perfectly centralised
Button

All In One Solution

-> Telescopes ASA 400 and ED150 on One enforced Base

Base plate made of Aluminium and enforced with a L-shape Steelbar

Balancing Telescope

-> DeepSky Setup versus Projection SetUps

1.) When the SetUp is used for DeepSky fotographie, the SBIG Camera/ Rotator/ f9 Korrektor is mounted to the ASA focuser at the backsite of ASA400.

The backsite counterweights are taken off to balance this heavy change.

2.) When the SetUp is used for Projection fotographie (Moon, Planets, Sun bright field), the ASICamera/ FFC/ Rotator is mounted to the ASA focuser at the backsite of ASA400.

3.) For the Telezentric fotographie (Sun H-alpha) the ASICamera/ Telezentric/ H-alpha Filter SetUp is mounted to the Feathertouch focuser of the ED150 refractor.

In case of 2.) and 3.) The backsite counterweights are mounted to the rod and moved to balance the various projection SetUp weights

The Counterweigt at the Alt-AD7 Mount in the uppermost position is minimally slided to finetune the two SetUp's Deepsky versus Projection.
